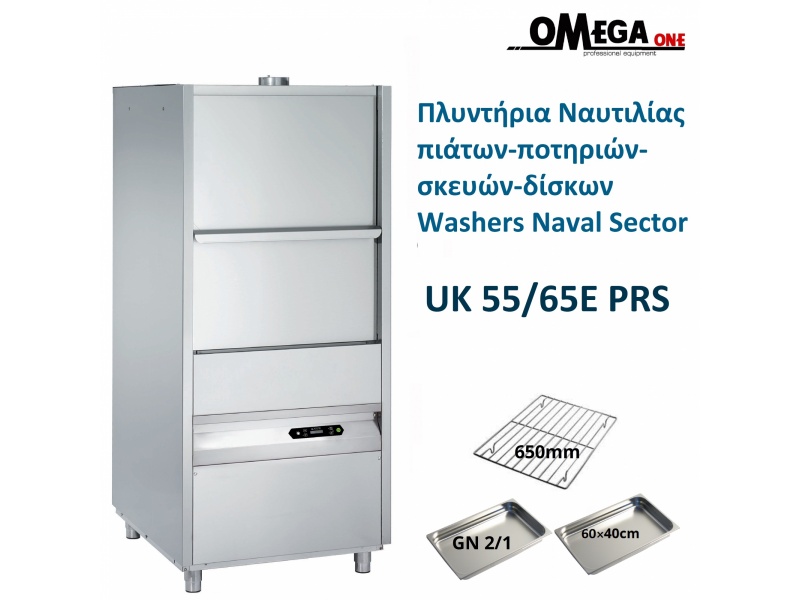

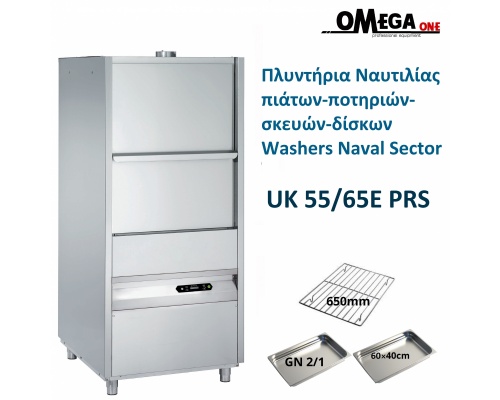

UK 55/65E PRS Νavigation Commercial Dishwashers

Dimensions (LxPxH):  740x876x1883/2031 mm

Rack size: 565x690 mm

Washing cycle/racks/hour: 2’-3’-6’-9’

Washing cycle/racks/hour: 30-20-10-7

Wash pump: 2,3 Kw

Boiler capacity: 11 liters

Tank capacity: 65 liters

Boiler heating element: 6 Kw

Tank heating element: 6 Kw

Water quantity per cycle: 3,5 litrers

Useful washing height: 650 mm

Dimensions: GN 2/1 Trays 60×40 cm

Voltage: 380-415 V3N ~ 50 Hz

Total power: 7,5 kW

Amperage: 22 A

Power cord supply size: 5 x 4 mmq

Gross weight: 193,5 Kg



EQUIPMENT AS GLASSWASHER

1 inox basket 66x81.5 cm with wheels

1 inlet hose (lenght 2 m)

1 drain hose (lenght 2 m)



BODY

AISI 304 stainless steel Body - Double skinned insulated body - Door handle in s/s - Preformed wash tank AISI 316 - Wash/rinse arms in s/s, easily removable - Boiler in acciaio inox AISI 316 - Electronic controls LCD display - Magnetic door microswitch - Automatic water filling - Double electric detergent and rinse dispenser - Hot rinse - Thermostop function - Self-cleaning vertical pump - PRS system (Atmosperic Boiler+Break tank) - Green Functom for energy saving - Automatic end-of-day self cleaning of water

FILTRATION

Pre-filtering of the tank water by means of no. 1stainless steel filter equipped with collection basket - Pump filter in stainless steel, easily removable

WATER SUPPLY CONNECTION

A water softener must be installed if the water ishard - The water pressure must be between 0.2MPa (2bar), and, 0.5MPa (5 bar) - The temperature of the water-supply must bebetween 10°C to 50°C

INSTALLATION

Use the screws of the feet and a spirit level toensure that the machine is levelled

MAIN POWER SUPPLY

The voltage of main power supply must becompatible with the rated voltage - The machine must be connected to a suitableearth (ground) system - Connect the machine power socket to themultipole wall switch provided

OPTIONAL

Drain pump - Hot water filling - 60 Hz version - HD version (P.Tot. 14,3 kW, 380-415V3N ~ only)

ACCESSORIES FOR WATER TREATMENT

External softener

ACCESSORIES

Stainless steel supports for special tray washingcm.60x40
