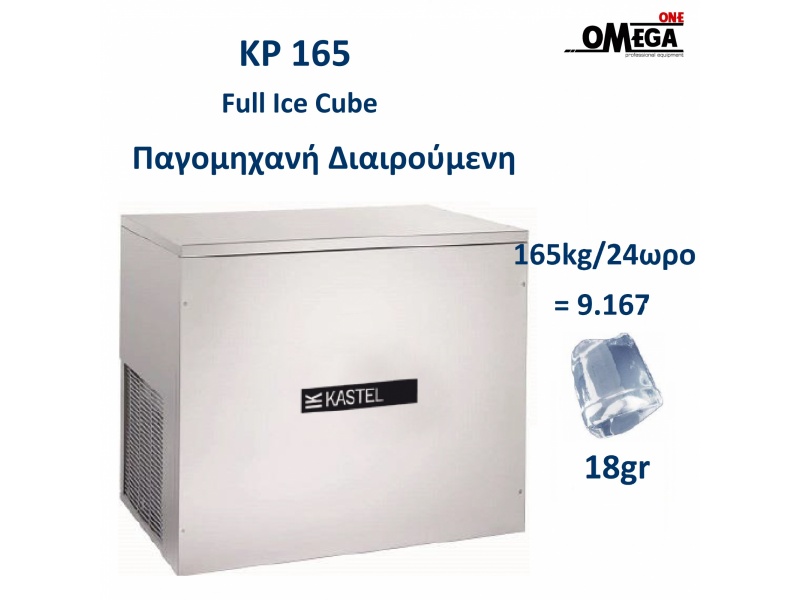

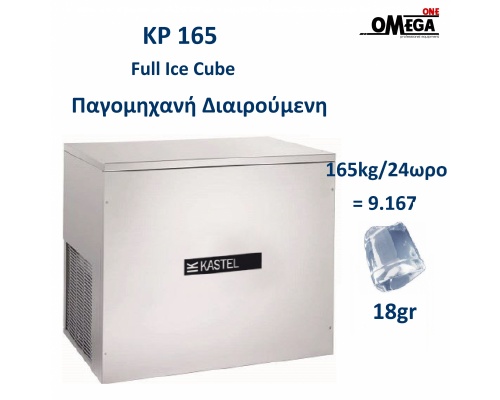

Full Ice Cube Makers 165kg/24hr Storage Separate
- Code: OM | KASTEL KP 165 -03/23--
2,600.00€
TAX not Included
TAX not Included
Description
Control system: Mechanical control
Cooling system: Air cooled
Full ice cube: 18 gr
Production in 24 hr: 165 kg Up to 9167 cubes
Production per cycle: 108 ice cubes
Storage capacity: Separate
Voltage Standard: 230 V~ 50 Hz
Power consumption: 1900 W
Type of refrigerant: R 452 A
Dimensions (WxDxH): 865×560×810mm
Net Weight: 94 kg
FULL ICE CUBE: High density full ice cube, crystal-clear and pure. Suitable for the long-lasting cooling of any drink, without water it down, for any use.
HORIZONTAL EVAPORATOR, SPRAY SYSTEM: The horizontal evaporator consists in conic copper cups faces down. The pump raises the water under pressure, which is sprayed to the evaporators thaks to the sprayers. The ice cubes are formed inside each cup and thanks to the hot gas they will fall down into the tank.
BACK STAGE: Modular machines to be fitted on a separat storage for big ice capacity, to be usually installed on the backstage: hard workers, continuos production. Really suitable for restaurants, hotels, discos, fast foods. They are a good solution also for the high-season business.
All models are for „tropical use’: they can produce ice even at a room temperature of 43°C and water temperature of 32°C.
