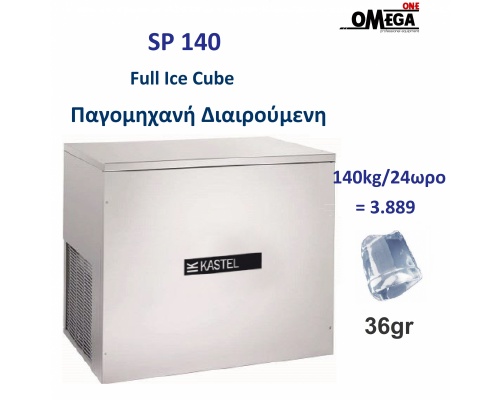

Full Ice Cube Makers 140kg/24hr Storage Separate

Control system: Mechanical control

Cooling system: Air cooled

Full ice cube: 36 gr

Production in 24 hr: 140 kg  3.889 Full ice cube

Production per cycle: 60  ice cube

Storage capacity: Separate

Voltage Standard: 230 V~ 50 Hz

Power consumption: 1900 W

Type of refrigerant:  R 452 A

Dimensions (WxDxH): 865×560×810 mm

Net Weight: 94 kg



FULL ICE CUBE: High density full ice cube, crystal-clear and pure. Suitable for the long-lasting cooling of any drink, without water it down, for any use.

HORIZONTAL EVAPORATOR, SPRAY SYSTEM: The horizontal evaporator consists in conic copper cups faces down. The pump raises the water under pressure, which is sprayed to the evaporators thaks to the sprayers. The ice cubes are formed inside each cup and thanks to the hot gas they will fall down into the tank.

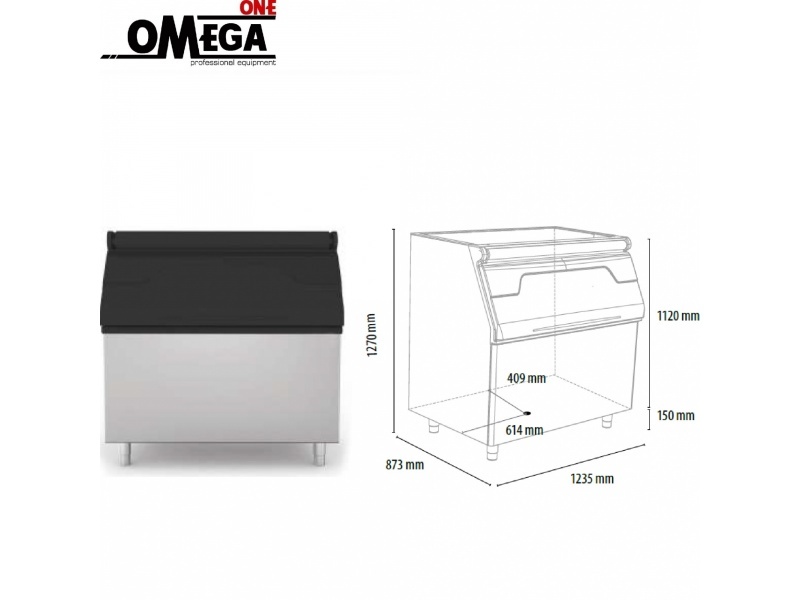

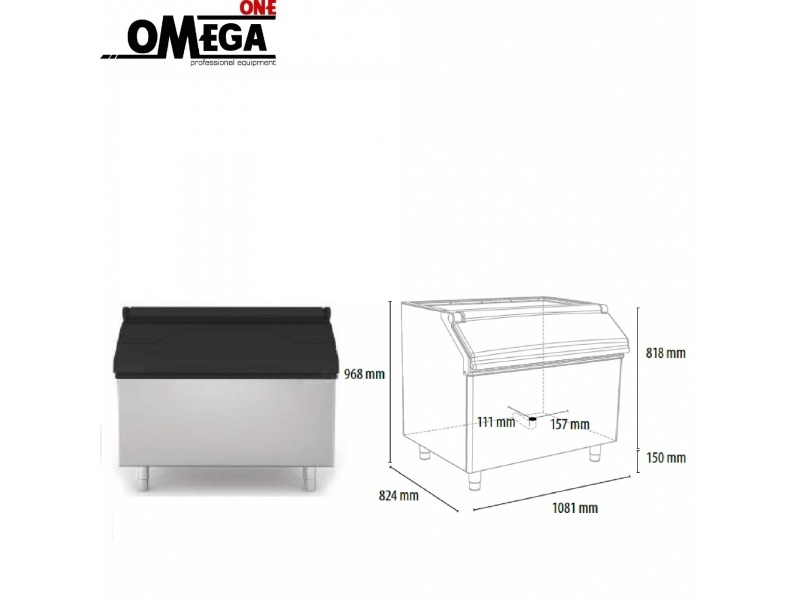

BACK STAGE: Modular machines to be fitted on a separat storage for big ice capacity, to be usually installed on the backstage: hard workers, continuos production. Really suitable for restaurants, hotels, discos, fast foods. They are a good solution also for the high-season business.

All models are for „tropical use’: they can produce ice even at a room temperature of 43°C and water temperature of 32°C.
