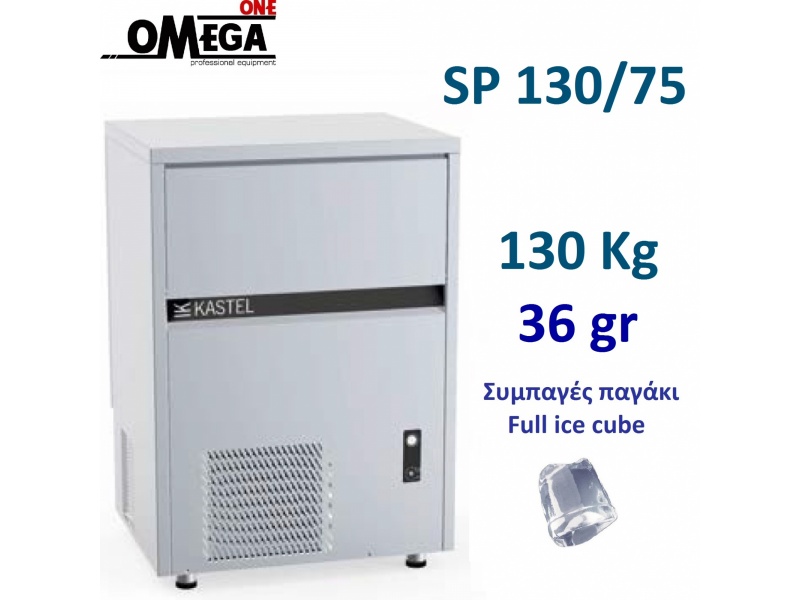

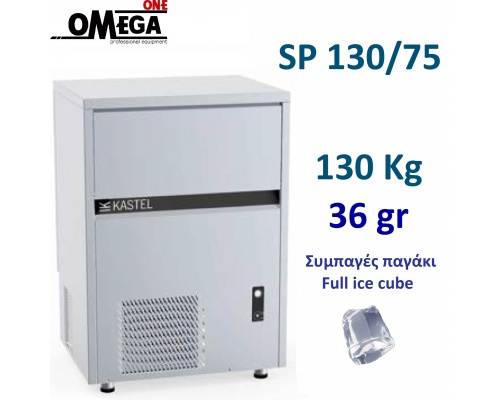

Full Ice Cube Makers 130kg/24hr = 3.611 cubes Storage bin 75kg = 2.083 cubes

Code: OM | KASTEL SP 130/75 -02/23-

2,580.00€
TAX not Included

Description

Control system: Mechanical control

Cooling system: Air cooled

Full ice cube: 36 gr Full Ice Cube 42×45 mm

Production in 24 hr: 130 kg Up to 3.611 cubes

Production per cycle: 60 ice cubes

Storage capacity: 75 kg Approx 2.083 cubes

Voltage Standard: 230 V~ 50 Hz

Power consumption: 1250 W

Type of refrigerant: R 452 A

Dimensions (WxDxH): 840×745×1070 mm

Feet: 40-50 mm

Net Weight: 107 kg

FULL ICE CUBE: High density full ice cube, crystal-clear and pure. Suitable for any use.

HORIZONTAL EVAPORATOR, SPRAY SYSTEM: The horizontal evaporator consists in conic copper cups faces down. The pump raises the water under pressure, which is sprayed to the evaporators thaks to the sprayers. The ice cubes are formed inside each cup and thanks to the hot gas they will fall down into the tank.

BACK COUNTER: Medium and large machines to be fitted in the work area, on the back of the bars, elegant to be shown. The big production is a real advantage when the need of ice is necessary in a short period, p.e. in big bars, discos, music clubs, big restaurants and hotels. The machines have a maximum width of 90 cm and thanks to the maximum height of 120 cm and the good top panel (74x60 cm or 84x74 cm), they can be used as a desk for work or to place light things, with no waste of space.

All models are for „tropical use“: they can produce ice even at a room temperature of 43°C and water temperature of 32°C.
