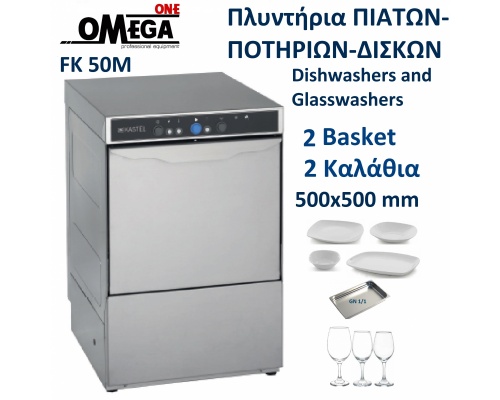

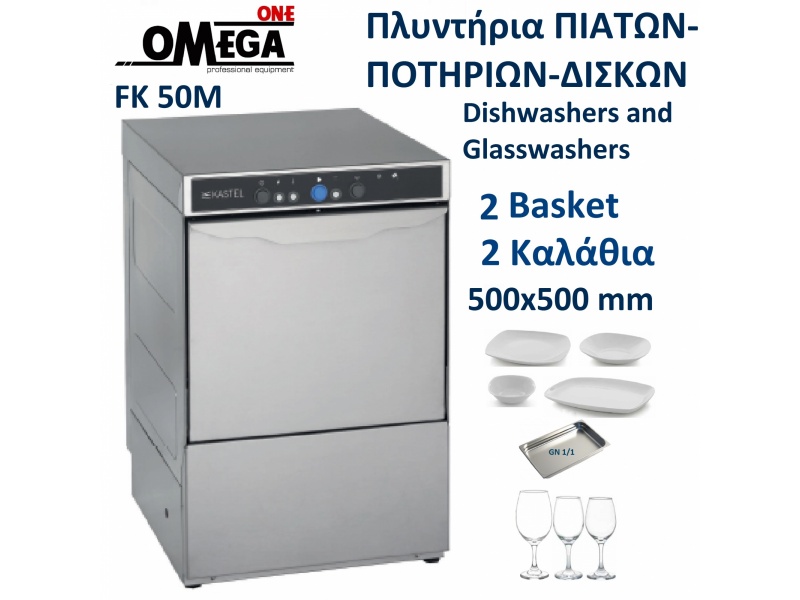

Commercial Dishwashers, glass washers and utensil washers 220V Baskets 500x500 mm

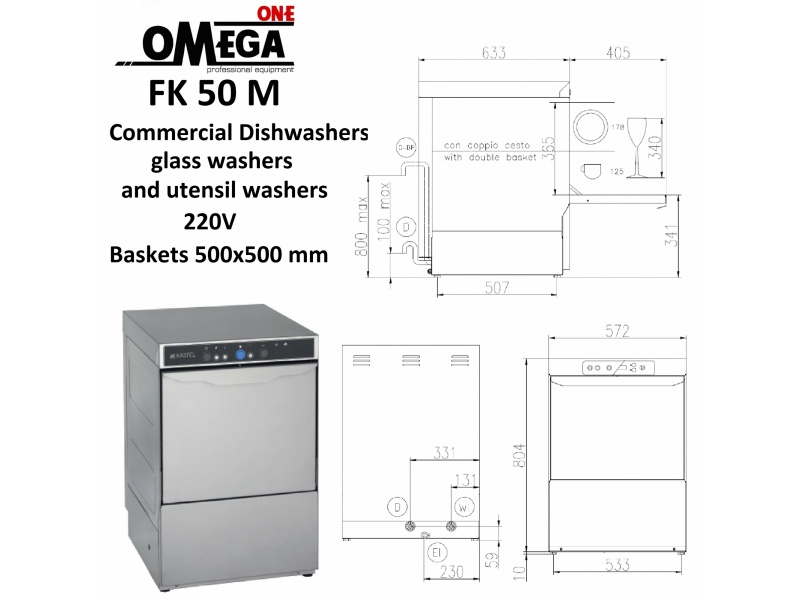

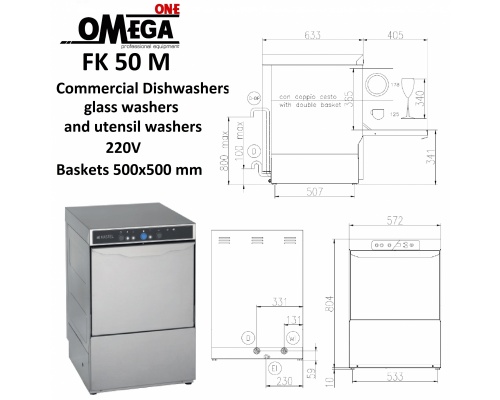

Dimensions (LxPxH): 572x633x814 mm

Rack size: 500×500 mm

Useful washing height: 340 mm

Washing cycles/racks/hour: 90”-120” / 40-30

Wash pump: 550 W

Water quantity per cycle:  2 liters

Boiler capacity:  5 liters

Tank capacity:  20 liters

Boiler heating element:  2,7 Kw

Tank heating element:  2,4 Kw

Voltage: 220-240 V ~ 50 Hz

Total power: 3,25 kW

Amperage: 14 A

Net Weight:  60,5 Kg



•Electromechanical controls•Bottom and top wash/rinse arms•Magnetic door microswitch•Automatic water fillimg•Built-in rinse-aid dispenser (adjustable)•Hot rinse•Rinse aid dispenser•The rmostop function•Anti back-flow valve



EQUIPMENT

•1 glass rack 50x50 cm

•1 plates rack 50x50 cm (12/18 plates)

•1 cutlery small basket

•1 inlet hose (lenght 2 mt)

•1 drain hose (lenght 2,5 mt)

•Power cord supply size: 3 x 1,5 mmq

BODY

•AISI 304 stainless steel Body•Partial double skinned body•Preformed rack guides•Preformed wash tank•Double skinned door•Boiler in s/s AISI 304•Door handle in s/s•Easily removable wash and rinse arms•PVC protection rear the bottom front panel

FILTRATION

Plastic wash pump filter, easily removable

WATER SUPPLY CONNECTION

A water softener must be installed if the water ishard

The water pressure must be between 0.2MPa (2bar), and, 0.5MPa (5 bar)

The temperature of the water-supply must bebetween 10°C to 50°C
