Acoustic Inline Mixed Flow Duct 2 Speed Fans TD SILENT Series

Code: TD SILENT -10/22

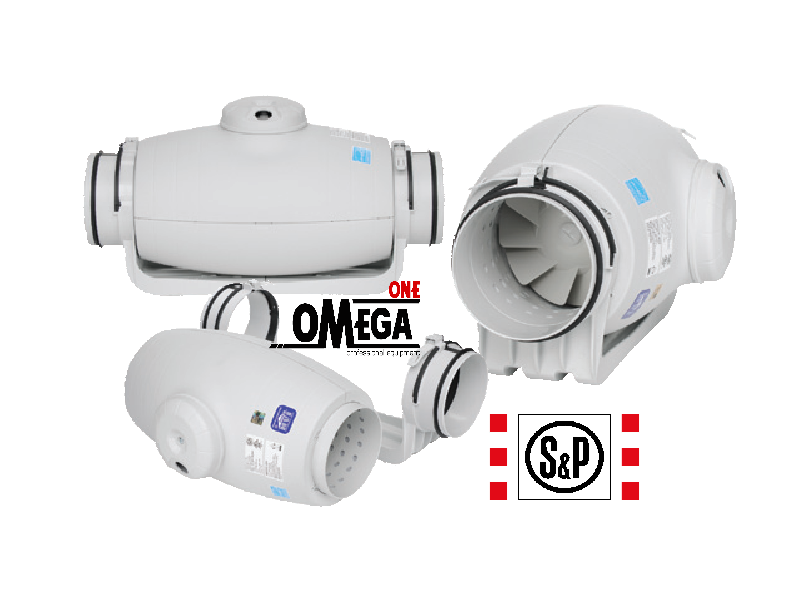

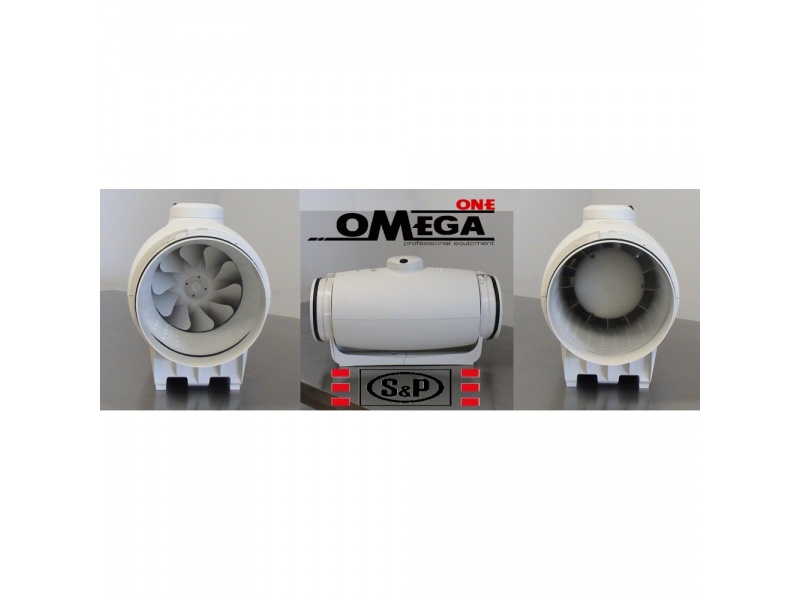

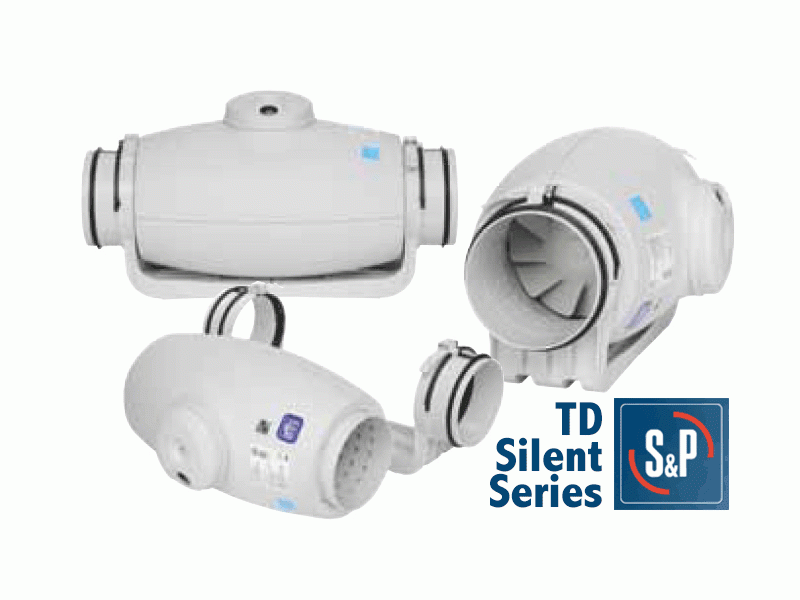

TD-SILENT Series Inline Mixed Flow Ultra Quiet Duct Fan.

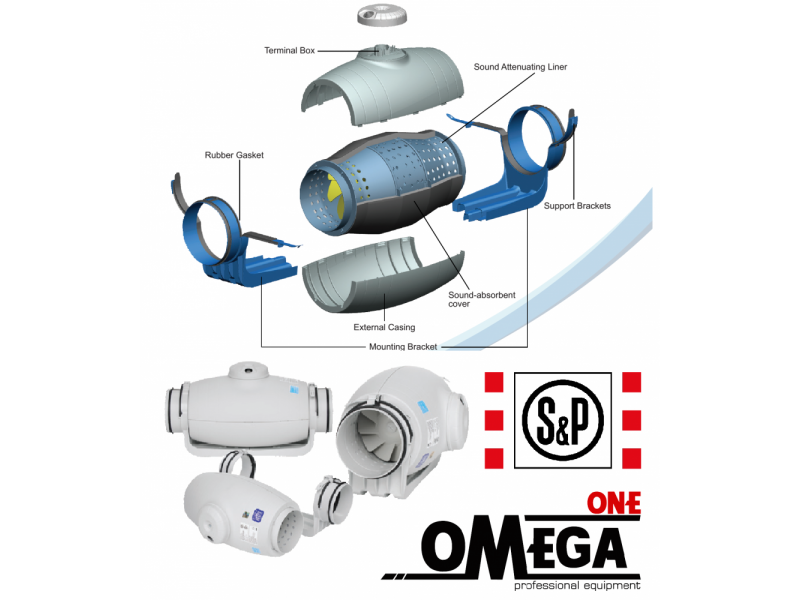

Fitted with rubber gaskets on the inlet and outlet to absorb vibrations, a body that can be dismantled.
Connection box can be rotated 360º, to facilitate easy connection of the power cable.
2 Speed.

See available options...
TAX not Included

Price: Specifications:

TD-160/100 RPM 2500/2200-Watt 20/12-Amber 0,16/0,10-Air flow: 180/140 m3/h-Temper. -20/+40ºC-dB(A) 24/21-Diam.: Ø 100-Weight: 1,4 kg

95.00€ TD-250/100 RPM 2200/1850-Watt 24/18-Amber 0,11/0,10-Air flow: 240/180 m3/h-Temper.: -20/+40ºC-dB(A) 24/19-Diam.: Ø 100-Weight: 5,4 kg

180.00€ TD-350/125 RPM 2250/1900-Watt 30/22-Amber 0,11/0,10-Air flow: 380/280 m3/h-Temper: -20/+40ºC-dB(A) 20/40-Diam.: Ø 125-Weight: 4,94 k

195.00€ TD-500/150 RPM 2500/1950-Watt 50/44-Amber 0,22/0,19-Air flow: 580/430 m3/h-Temper: -20/+60ºC-dB(A) 22/17-Diam.: Ø 150/160-Weight: 6 kg

260.00€ TD-800/200 RPM 2780/2480-Watt 70/60-Amber 0,30/0,26-Air flow: 880/700 m3/h-Temper.: -20/+60ºC-dB(A) 19/18-Diam.: Ø 200-Weight: 8,7 kg

300.00€ TD-1000/200 RPM 2500/2000-Watt 120/100-Amber 0,50/0,45-Air flow: 1100/800 m3/h-Temper.: -40/+60ºC-dB(A) 21/20-Diam.: Ø 200-Weight: 8,7 kg

335.00€

Add to my list

Product was successfully added to cart

Description

The low profile of the TD-SILENT fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings.
You will not believe the sound ratings on the larger fans of this range, they are quite unparalleled by any other fans of that type and size.

Foil Flexible Ducting ALUTEX

See available options...

Compare Buy

Quick view

Prices may change without notice

Foil Flexible Ducting Semiconnect

See available options...

Compare Buy

Quick view

Prices may change without notice

Foil Flexible Ducting ISOTEX

See available options...

Compare Buy

Quick view

Construction The TD-MIXVENT models 100, 100x, 125,150, and 200 are manufactured in tough reinforced plastic, models 250, 315, 355 and 400 have a metal casing and are finished in a tough epoxy-polyester paint coating. The TD fan duct connection flanges are manufactured from reinforced plastic, except for models 200, 250 and 315 which are constructed from epoxy-polyester coated metal.
