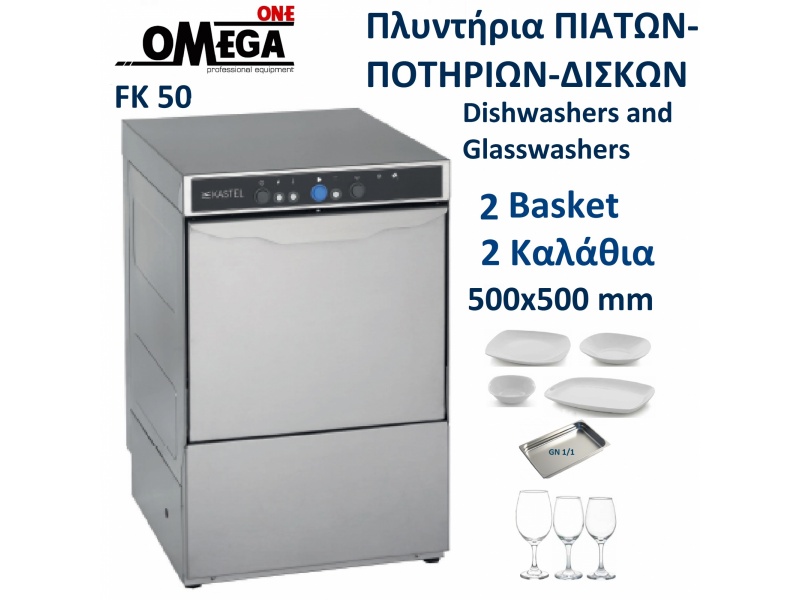

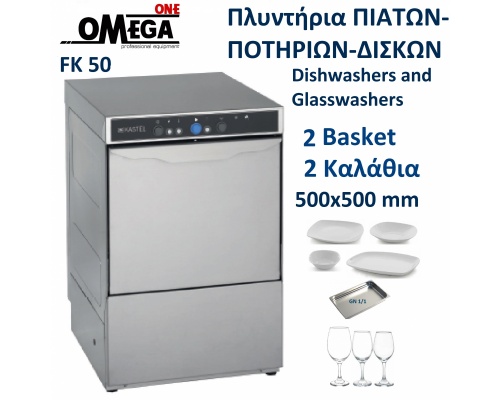

Commercial Dishwashers, utensil washers, glass washers 380V Baskets 500x500 mm

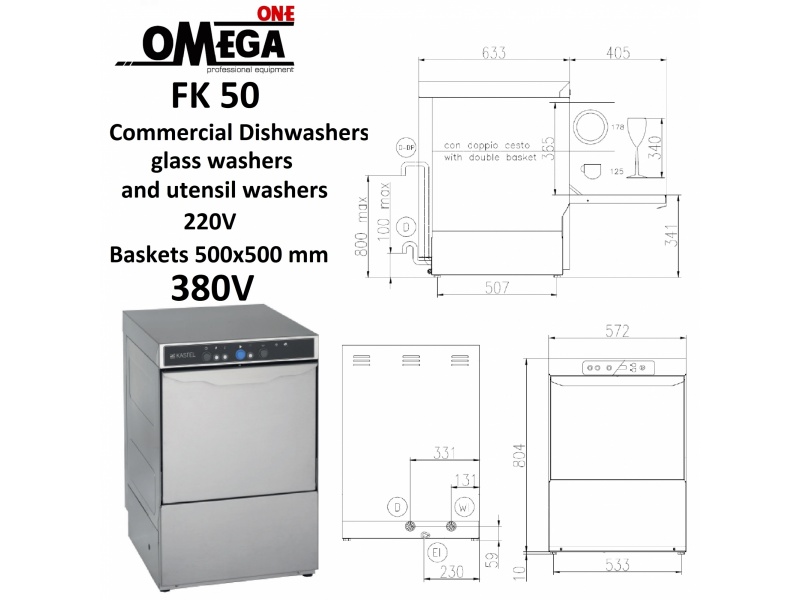

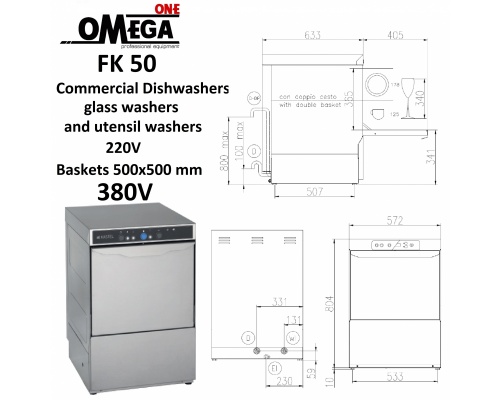

Dimensions (LxPxH):  572x633x814 mm

Rack size:  500×500 mm

Useful washing height:  340 mm

Washing cycles/racks/hour:  90”-120” / 40-30

Water quantity per cycle:  2 liters

Wash pump:  550 W

Water quantity per cycle: 2 liters

Boiler capacity: 5 liters

Tank capacity:  20 liters

Boiler heating element:  2,7 Kw

Tank heating element:  2,4 Kw

Voltage: 380-400V3N~50Hz

Total power:  5,05 kW

Amperage: 7 A /14 A /21 A

Net Weight:  63 Kg



EQUIPMENT

•1 glass rack 50x50 cm

•1 plates rack 50x50 cm (12/18 plates)

•1 cutlery small basket

•1 inlet hose (lenght 2 mt)

•1 drain hose (lenght 2,5 mt)

•Power cord supply size: 5x2,5 / 3x 4mmq



•Top and bottom wash/rinse arms •Electromechanical controls•Bottom and top wash/rinse arms•Magnetic door microswitch•Automatic water fillimg•Built-in rinse-aid dispenser (adjustable)•Hot rinse•Rinse aid dispenser-•The rmostop function•Anti back-flow valve

BODY

•AISI 304 stainless steel Body•Partial double skinned body-•Preformed rack guides•Preformed wash tank•Double skinned door•Boiler in s/s AISI 304•Door handle in s/s•Easily removable wash and rinse arms•PVC protection rear the bottom front panel•Door handle in s/s•Wash/rinse arms, easily removable•Boi er in s/s AISI 304•PVC protection rear the bottom front panel

FILTRATION

Plastic wash pump filter, easily removable

WATER SUPPLY CONNECTION

•A water softener must be installed if the water ishard

•The water pressure must be between 0.2MPa (2bar), and, 0.5MPa (5 bar)

•The temperature of the water-supply must bebetween 10°C to 50°C
